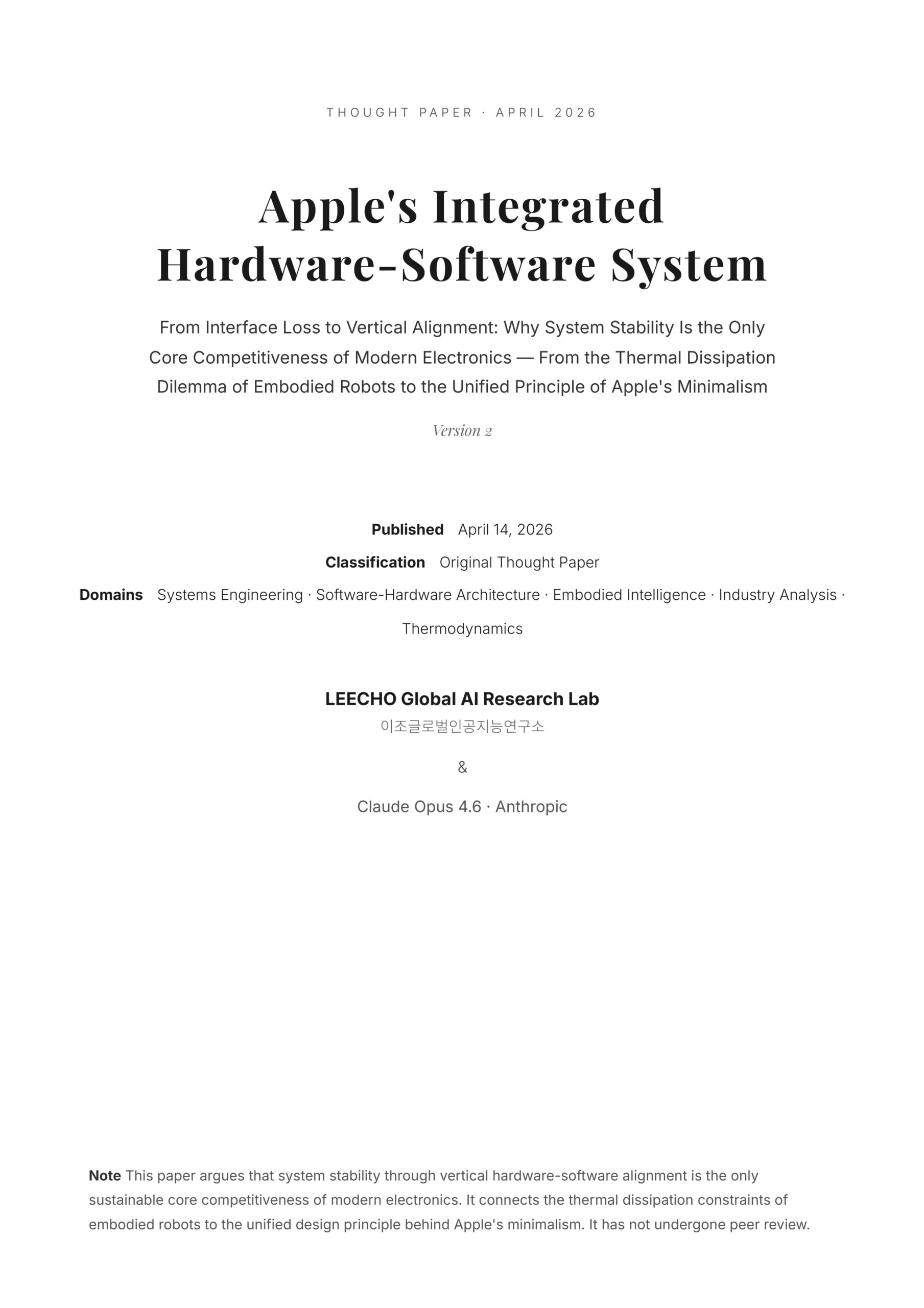

Apple’s Integrated
Hardware-Software System
From Interface Loss to Vertical Alignment: Why System Stability Is the Only Core Competitiveness of Modern Electronics
— From the Thermal Dissipation Dilemma of Embodied Robots to the Unified Principle of Apple’s Minimalism
Apple’s Integrated Hardware-Software System
From Interface Loss to Vertical Alignment: Why System Stability Is the Only Core Competitiveness of Modern Electronics — From the Thermal Dissipation Dilemma of Embodied Robots to the Unified Principle of Apple’s Minimalism
This paper advances a core proposition: the system stability delivered by hardware-software integration is the only core competitiveness of modern electronic products at the terminal level. Using Apple’s product philosophy as prototype, the paper enters through the thermal dissipation dilemma of embodied robots, proceeding layer by layer to analyze the thermal loss inherent in electric drive systems, the orders-of-magnitude system maturity gap between humanoid robots and electric vehicles, and the interface energy consumption problems created by the separated development of software and hardware. This paper uses quantitative data to demonstrate the concrete scale of interface losses, introduces the NVIDIA vertical integration case to distinguish between “terminal product alignment” and “infrastructure alignment,” proposes a minimalist robot design based on mobile manipulators, and offers three falsifiable predictions with time-bound frameworks. Core conclusion: when the number of interfaces is sufficiently large, the losses at the interfaces themselves systematically consume all optimization gains from subsystems. The Apple model — achieving full-chain alignment through minimalism under current technology maturity constraints — is a viable path to breaking through current bottlenecks.
From RT-2 to the Thermal Dissipation Dilemma
From RT-2 to the Thermal Dissipation Dilemma
In July 2023, Google DeepMind released Robotic Transformer 2 (RT-2), inaugurating the Vision-Language-Action (VLA) model paradigm. RT-2 represents robot actions as text tokens, trained in exactly the same format as natural language, enabling the reasoning capabilities of large language models to be directly translated into physical robot actions for the first time.
However, between RT-2 and truly deployable embodied intelligence products lies a severely underestimated physical constraint: thermal dissipation. When VLA models (3B–55B parameters) need to run in real time on a robot’s body while dozens of joint motors continuously output torque inside a sealed shell, heat is generated far faster than it can be expelled. OpenVLA 7B achieves only 5Hz inference on high-end GPUs, π₀ 3B approximately 10Hz, while precision robot manipulation requires 50–120Hz. This is not a problem that software optimization can bypass — it is a hard constraint set by the second law of thermodynamics.
parameter count
on powerful GPU
for fine manipulation
Thermal Loss in Core Components: Where Lubrication Cannot Reach
Thermal Loss in Core Components: Where Lubrication Cannot Reach
In traditional mechanical systems, the primary heat source is mechanical friction. Lubricating oil plays a dual role: reducing frictional heat generation while simultaneously serving as a flowing medium to carry heat away. Heat source and cooling medium complete their exchange at the same physical location.
Humanoid robot electric drive systems fundamentally lose this natural advantage. The primary heat sources of BLDC (brushless DC) motors are ohmic heat in coil windings (I²R copper losses) and eddy current losses generated by alternating magnetic fields in permanent magnets — inherent products of electromagnetic physics laws, unrelated to mechanical friction. Excessive temperatures can permanently damage insulation systems or demagnetize permanent magnets above the Curie temperature. It is impossible to apply lubricating oil to coil windings to reduce ohmic heat, just as it is impossible to immerse semiconductor chip surfaces in lubricating media.
Core physical constraint: Heat from motor coils and GPU chips can only “slowly crawl” through solid thermal conduction to the outer shell surface, then be carried away by liquid cooling or air. Solid conduction rates are far lower than fluid convection rates. Heat is trapped the moment it is generated. The sealed shell and low-thermal-conductivity polymer skin of humanoid robots further block the exit path.
Human Body vs. Robot: The Non-Replicability of Evaporative Cooling
The human body possesses a distributed evaporative cooling network of 2–4 million sweat glands. An elite marathon runner can expel 3.5 liters of sweat per hour, equivalent to approximately 2.4 kilowatts of cooling power. Evaporative cooling can lower an object’s temperature below ambient — conduction, convection, and radiation are only effective when ambient temperature is below body temperature.
Robots possess no equivalent “thermal overflow port.” Cornell University’s hydrogel micropore evaporation scheme and the University of Tokyo’s Kengoro laser-sintered aluminum skeleton water-seepage scheme both face fatal issues including water replenishment, electronic component corrosion, and slipperiness causing grip failure, and remain unengineerable to this day. Tesla Optimus was forced to halt mass production in mid-2025 due to joint motor overheating, short transmission mechanism lifespan, and insufficient battery range — approximately 1,000 assembled units are used only for battery workshop transport, at less than half the efficiency of human workers.
peak cooling power
available cooling space
before production halt 2025
Orders-of-Magnitude Gap in System Maturity
Orders-of-Magnitude Gap in System Maturity
Traditional industrial robot arms execute closed tasks on closed paths within closed systems. Electric vehicles execute a limited task set on constrained paths within semi-open environments. Embodied humanoid robots execute open task sets on open paths within fully open environments. With each added layer of openness, system complexity grows exponentially.
| Dimension | Electric Vehicle | Humanoid Robot |
|---|---|---|
| Stability | Four wheels — naturally statically stable | Bipedal — dynamically unstable (inverted pendulum); falls on power loss |
| Motion space | 2D plane | 3D space + full-body coordination |
| Degrees of freedom | 2–3 | 20–40+ joints controlled simultaneously in real time |
| Environmental structure | Regulated roads | Unstructured 3D space |
| Cooling conditions | Ample space + high-speed natural airflow | 57kg sealed shell, no external airflow |
| Data accumulation | Millions of vehicles, hundreds of billions of km | Hundreds of prototypes |
| Fail-safe mechanism | Emergency braking stops the vehicle | No “brake” fallback |
Reliability product rule: Total system reliability is the product of each subsystem’s reliability. 10 subsystems each at 95% reliability yield only 60% total. Each at 90%, total drops to 35%. A humanoid robot must simultaneously solve balance, locomotion, vision, grasping, reasoning, cooling, power supply, and communication — any single link failing renders the whole system unusable.
Interface Loss: The Black Hole That Devours All Optimization Gains
Interface Loss: The Black Hole That Devours All Optimization Gains
When software and hardware are developed by different companies, every connection point becomes an energy leakage point, every layer of abstraction becomes an efficiency attenuator.
The Interface Stack of AI Inference Chains
Quantitative Evidence of Interface Loss
Industry benchmarks show that inference workloads typically achieve only 40–50% GPU utilization due to request fluctuations. HPC system empirical data further reveals: average GPU utilization of 71.77%, but memory utilization of only 28.64% — a large share of workloads severely underutilize available memory resources. This means chips spend most of their time waiting for data transfers — and waiting means idle heat generation.
GPU utilization
memory utilization
AI data center power demand
capital expenditure
Macro consequences: Alphabet, Amazon, Microsoft, and Meta plan to invest approximately $400 billion in data centers in 2026 alone. AI currently accounts for about 14% of global data center electricity and will rise to 27% by 2027. Of these astronomical investments, how much is paying for interface losses?
The Interface Stack of Robot Control Chains
30 joints means 30 chains running in parallel, requiring millisecond-level synchronization. Every arrow is an interface; every interface has latency, energy consumption, and failure probability.
The hidden cost of redundant design: When software and hardware are separated, each side builds margin at interfaces to handle the other’s uncertainty. Hardware makes bus bandwidth larger “just in case”; software adds buffer layers “just in case.” These safety margins stack — more transistors, more power consumption, more heat generation. Every layer’s engineer optimizes locally; the global result is that all optimization gains are consumed by interface losses.
Minimalist Vertical Alignment: Quantitative Evidence
The Apple Paradigm: Minimalist Vertical Alignment with Quantitative Evidence
Apple’s core philosophy is not “build the strongest technology” but “deliver the best experience under current technology maturity constraints.” The unified memory architecture of M-series chips is the ultimate embodiment of this philosophy — CPU, GPU, and Neural Engine share a single memory pool, eliminating dedicated VRAM, data transfers between CPU and GPU, and the PCIe bus bottleneck.
Apple vs. Discrete Architecture: Quantitative Comparison
The efficiency gains of unified memory are not theoretical speculation but measurable physical fact:
| Metric | Discrete GPU (RTX 4090 + 128GB DDR5) | Apple M4 Max 64GB |
|---|---|---|
| Llama 3 70B 4-bit TTFT | 2.1 seconds | 420ms (5× faster) |
| Inference throughput | 10 tokens/s | 28 tokens/s (2.8×) |
| Sustained inference power | ~300–450W (GPU+system) | 50W |
| Annual electricity (continuous) | ~$630 | ~$52 (8%) |
| Energy efficiency (GFLOPS/W) | ~52 | 245–460 (5–9×) |
| 3-year cost per million tokens | Baseline | ~1/5 |
The source of the difference is architectural: in discrete systems the model cannot fit entirely in GPU VRAM and must be split across VRAM and system RAM, with every forward pass requiring data transfer over the PCIe bus. In unified memory systems, the entire model resides in the shared memory pool — the GPU never waits for data because the data is already there. Apple’s thermal solution is not “build better cooling” but “make it not need that much cooling in the first place.”
The true meaning of software-hardware alignment: Not making every layer the strongest, but making every layer’s boundaries precisely match. Software only does what hardware can reliably support; hardware only serves the capabilities software truly needs. Information on both sides is fully transparent, boundaries perfectly matched, with no gray zone requiring guesswork or safety margins. Apple eliminates trade-offs by eliminating the interfaces themselves.
Bounding “Only”: Terminal Alignment vs. Infrastructure Alignment
Bounding “Only”: Terminal Alignment vs. Infrastructure Alignment
The assertion that “system stability is the only core competitiveness” requires precisely defined applicability boundaries. NVIDIA provides an important counterexample and supplement.
NVIDIA’s FY2026 revenue reached $215.9 billion, with data center revenue of $193.7 billion and gross margins exceeding 70%. Jensen Huang has explicitly stated that NVIDIA is implementing an “Apple-like” vertical integration strategy — from GPU to CPU (Grace), networking (Mellanox/ConnectX), software (CUDA/TensorRT/Dynamo), to complete rack systems (Vera Rubin DSX), with $8 billion in annual R&D. The 2025 acquisition of CentML further integrated AI compiler optimization.
NVIDIA demonstrates that vertical integration is also a core competitiveness at the infrastructure layer. But its “alignment” differs from Apple’s:
| Dimension | Apple (Terminal Product Alignment) | NVIDIA (Infrastructure Alignment) |
|---|---|---|
| Alignment endpoint | End-user experience | AI engineer development experience |
| Control chain | Chip→OS→App→UI | GPU→CUDA→TensorRT→Inference framework |
| Degree of closure | Fully closed ecosystem | Hardware closed + software partially open |
| Source of competitiveness | Interface loss minimization → experience stability | Interface loss minimization → performance density |
Revised assertion: Interface loss minimization through software-hardware alignment is a core competitiveness — this applies simultaneously to the terminal product layer (Apple) and the infrastructure layer (NVIDIA). The difference lies in the alignment endpoint. Apple aligns to user experience stability; NVIDIA aligns to computational performance density. Both derive their competitiveness from the same physical principle: fewer interfaces, less loss. The industry is validating this judgment — Anthropic committed to million-scale Google TPUs, Midjourney’s migration to TPUs reduced inference costs by 70%, OpenAI has launched an in-house chip program — all directions point to the same conclusion: the losses of general-purpose interfaces are driving the entire industry toward specialized alignment.
Projects That Outpace Technical Maturity Will Inevitably Fail
Historical Iron Law: Projects Ahead of Technical Maturity Will Fail
Concorde — technically a complete success, flew for 27 years without a single crash due to design defects, yet its per-seat economics were far inferior to the Boeing 747. Boeing chose the “minimalist solution” of subsonic flight with large passenger capacity and won for half a century. Google Glass in 2013 was conceptually ahead of its time — battery lasted only tens of minutes, heated the wearer’s temple. A decade later, Meta’s Ray-Ban smart glasses only did photography and voice assistant, yet actually sold. Japan’s ASIMO — the world’s first humanoid robot capable of running, jumping, and climbing stairs — found no commercial application in 22 years and was retired in 2022.
The current humanoid robot industry stands at the edge of the same trap. Every subsystem is “almost usable but not reliable enough” — multiplied together, the system is “essentially unusable” — yet the industry keeps adding more subsystems.
The reverse path of success: Truly successful tech products follow the opposite path — first combine mature subsystems into a minimum viable system, prove the economic case in real scenarios, then use scale data and revenue to fund iteration. The first iPhone couldn’t copy and paste. The Tesla Roadster was batteries mounted on a Lotus Elise chassis — changing only one variable, the powertrain. Amazon’s million warehouse robots don’t look remotely human, but they generate real economic value 24/7.
The Concrete Form of a Minimalist Robot
The Minimalist Robot: A Concrete Design Proposal
If embodied intelligence products were designed the Apple way, they would not look human. Bain & Company explicitly states: the most commercially promising short-term value lies not in general-purpose humanoid robots but in hybrids — combining human-like perception with wheeled platforms and limited dexterity. Industry data confirms this: the dominant form factor in logistics and warehousing is already the mobile manipulator — a wheeled chassis with one or two arms. As of Q1 2026, at least 11 commercial deployments use VLA models as their primary policy backbone.
Specific cases: MiR MC600 (MiR600 AMR + UR20/UR30 collaborative arm, 2025 RBR50 Innovation Award), HMND 01 Alpha (dual-arm wheeled, warehouse-specific), Kinisi KR1 (dual-arm wheeled chassis). Agility Robotics’ Digit has moved over 100,000 boxes in the GXO Logistics commercial environment.
The Minimalist Alignment Plan
| What to Cut | Why Cut It | What It Frees Up |
|---|---|---|
| Cut bipedal locomotion | Eliminates all balance control system complexity | Compute budget, power budget, and thermal budget all freed for manipulation |
| Cut general-purpose dexterous hands | 6-DOF hands can support 60–70% of human hand functions | 50%+ reduction in joint motors and cooling requirements |
| Cut on-device large models | Quantized VLAs already run at 10–25Hz on consumer GPUs | 2–3B local policy model + cloud inference hybrid architecture |
| Cut sealed skin | Exposed joints let air cooling work naturally | Eliminates the biggest thermal bottleneck |
| Cut the “look human” obsession | Partially modifying workstations is more economical than making robots adapt to everything | System complexity reduced by an order of magnitude |
Key insight: Fine-tuning a foundation VLA on 200–500 task demonstrations now consistently outperforms training a task-specific policy from scratch on 1,000+ demonstrations. This changes the economics of enterprise deployment — no longer needing a “general humanoid” to cover all tasks, but using one foundation VLA model plus rapid fine-tuning to efficiently cover each specific scenario. This is precisely Apple’s logic: don’t pursue universal best, pursue perfect alignment within the scenario.
Stress-Testing the Thesis
Stress-Testing the Thesis: Counterarguments and Limitations
Counterargument One: The Cost of Apple’s Closed Ecosystem
Apple’s vertical integration is not without cost. The closed ecosystem limits developer freedom, repair rights face ongoing legal challenges, and the internal coordination cost of chip design may slow innovation in specific domains. If embodied intelligence adopted a fully closed Apple model, it might miss the rapid iteration dividends of the open-source VLA ecosystem (OpenVLA, π₀, SmolVLA).
Counterargument Two: Infinite OOD in the Open Physical World
Apple makes consumer electronics — the user interaction interface is relatively simple (touchscreen, voice), the physical environment fixed (a human hand holding a phone). Embodied robots face an unstructured physical world. Even with perfect software-hardware alignment, the infinite OOD of the physical world will break any closed loop. The Apple model has been validated in terminal consumer products, but whether it is effective in open physical environments remains an open question.
Counterargument Three: Scale Effects May Offset Interface Losses
NVIDIA maintains 70%+ gross margins in an ecosystem with severe software-hardware misalignment. AWS’s competitiveness derives from scale effects and ecosystem lock-in. At the infrastructure and platform layers, interface losses may be compensated by economies of scale. The more precise scope of this paper’s “only” assertion should be limited to the terminal product layer.
This paper’s response: These counterarguments are all valid, but they do not negate the core thesis — they define the applicability boundaries of the core thesis. The transferability of the Apple model lies not in replicating its closed ecosystem, but in replicating its engineering philosophy of “eliminating unnecessary interfaces.” Minimalist alignment does not mean closure — it means consciously reducing the number of layers, reducing interfaces, and making information exchange at each layer as lossless as possible. The combination of open-source VLA + specialized hardware can fully achieve “alignment within an open ecosystem.”
Three Falsifiable Predictions
Falsifiable Predictions Generated by This Framework
Prediction One: Minimalist Form Factors Will Commercialize First
By June 2028, among embodied intelligent robots with cumulative global deployments exceeding 10,000 units in warehouse logistics, the proportion of wheeled chassis + dual-arm form factors will exceed that of fully capable bipedal humanoids. Verification: tally deployment data by form factor from Silicon Valley Robotics and SVRC annual reports.
Prediction Two: AI Companies Will Be Forced Toward Hardware Alignment
By December 2027, at least two major AI companies (OpenAI, Anthropic, Google DeepMind, Meta AI) will announce in-house inference chip programs or acquire hardware/robotics companies. Precursors already exist: OpenAI has hired former Google TPU designers, Anthropic signed a million-scale TPU agreement, Meta is in discussions with Google on multi-billion-dollar TPU deployments.
Prediction Three: Continuous Stable Working Time Ceiling for Fully General Humanoid Robots
By December 2028, humanoid robot companies that have not achieved full-chain in-house software-hardware development (using combinations of off-the-shelf GPUs + off-the-shelf motors + off-the-shelf gearboxes + third-party VLA models) will be unable to exceed 4 hours of continuous stable operation in uncontrolled commercial environments. The fundamental constraint on this ceiling is not the inadequacy of any single subsystem but the cumulative effect of interface losses across the thermal-compute-power triple dimension.
Significance of predictions: The three predictions respectively test three core judgments of this paper’s framework — minimalist outperforms generalist (Prediction One), the industry will be forced toward alignment (Prediction Two), and interface losses set the performance ceiling for non-aligned systems (Prediction Three). If predictions are falsified, the framework requires revision.
System Stability Is the Core Competitiveness of Terminal Products
System Stability Is the Core Competitiveness of Terminal Products
Unified principle (V2 revised): A system’s true efficiency depends not on the peak performance of the strongest subsystem, but on the throughput capacity of the weakest interface. Software-hardware alignment maximizes efficiency by reducing the number of interfaces and improving interface quality. At the terminal product layer (Apple) this manifests as experience stability; at the infrastructure layer (NVIDIA) as performance density. Both derive their competitiveness from the same physical principle. Whoever first practices this philosophy in embodied intelligence — replacing bipedal locomotion with wheeled chassis, general-purpose hands with specialized end effectors, on-device large models with a hybrid of small local + large cloud models — may define the first truly usable product form of embodied intelligence.
Positioning Within the Body of Work
This paper supplements the LEECHO paper series by arguing the software-hardware alignment thesis from the physical engineering dimension. “Software-Hardware Alignment and Automation” V2 defined the automation boundaries of pure-software AI companies from the industrial structure dimension — triple open loop, OOD data deficit, productivity paradox. This paper, starting from micro-level thermodynamics, reveals how the overlooked physical constraint of interface loss systematically devours all optimization gains, and proposes a concrete minimalist solution using the Apple model as reference. “Signal and Noise: An Ontology of LLMs” V4 defined LLM cognitive boundaries from the information-theoretic dimension. Together, the three papers constitute a three-dimensional analytical framework: cognitive boundaries (information theory) × automation boundaries (systems engineering) × efficiency boundaries (thermodynamics and interface loss).
References
- Brohan, A. et al. (2023). “RT-2: Vision-Language-Action Models Transfer Web Knowledge to Robotic Control.” Google DeepMind. arXiv:2307.15818.
- Chen, Y. et al. (2025). “Efficient Vision-Language-Action Models for Embodied AI: A Survey.” arXiv:2510.17111.
- Wanderer, W. et al. (2024). “Analysis of Liquid-Cooled Brushless Motor Actuators for Space Robotics.” European Planetary Science Congress.
- Wallin, T.J. & Mishra, A.K. et al. (2020). “Autonomic Perspiration in 3D Printed Hydrogel Actuators.” Science Robotics, 5(38), eaaz3918.
- Toyotaka, A. et al. (2017). “Kengoro: A Musculoskeletal Humanoid Robot with Perspiration Cooling.” IEEE/RSJ IROS.
- DigiTimes (2025). “Tesla Halts Optimus Robot Production Amid Design Overhaul.” July 2025.
- Electrek (2025). “Tesla Optimus is in shambles as head of program exits, production delayed.” July 2025.
- Bank of America (2025). “Humanoid Robots 101.” Transformation Report, April 2025.
- Ali, A. et al. (2025). “Analyzing GPU Utilization in HPC Workloads.” PEARC ’25. GPU 71.77%, memory 28.64% utilization.
- Introl (2026). “AI Infrastructure Capacity Planning.” Industry benchmarks: inference 40-50% GPU utilization.
- McKinsey (2025). “The Next Big Shifts in AI Workloads and Hyperscaler Strategies.” 156GW by 2030, $5.2T CapEx.
- VPSMAC (2026). “Apple Unified Memory: Why 64GB Mac is the AI Inference Cost-Performance King.” M4 Max vs discrete GPU benchmarks.
- Pinto, D. et al. (2025). “Apple vs. Oranges: Evaluating Apple Silicon M-Series SoCs for HPC.” arXiv:2502.05317. >200 GFLOPS/W.
- Flopper.io (2026). “Apple Silicon GPU Architecture Explained.” M4 Max 245-460 GFLOPS/W vs V100 52 GFLOPS/W.
- TechInvestments (2024). “The AI Datacenter: Nvidia’s Integrated AI Factory vs Broadcom’s Open Fabric.” NVIDIA Apple-like vertical integration analysis.
- AINvest (2025). “NVIDIA’s AI Empire: How Vertical Integration Secures Dominance.” CentML acquisition, $8B annual R&D.
- NVIDIA (2026). FY2026 Annual Report. $215.9B revenue, $193.7B datacenter revenue.
- AINvest (2026). “NVIDIA’s Vertical Integration Strategy Risks Locking Out Competitors—And Customers.” Vera Rubin full-stack analysis.
- AINNewsHub (2025). “Nvidia to Google TPU Migration.” Anthropic million-TPU deal, Midjourney 70% cost reduction.
- AI-2027.com (2026). “Compute Forecast.” OpenAI in-house chip plans, inference-specialized chip wave.
- Bain & Company (2025). “Humanoid Robots: From Demos to Deployment.” Hybrid wheeled+arm as most promising short-term value.
- SVRC (2026). “State of Robotics 2026.” Mobile manipulators as dominant logistics form factor, 11 commercial VLA deployments.
- MassRobotics (2025). “Humanoid Unveils HMND 01 Alpha.” Kinisi KR1, MiR MC600, RoboForce Titan wheeled manipulators.
- Automate.org (2026). “The Rise of Mobile Manipulators.” AI-enabled mobile manipulation as fastest-growing vertical.
- Du, X. et al. (2024). “A Flexible Thermal Management Method for High-Power Chips in Humanoid Robots.” Device (Cell Press).
- AI Robots Eidos (2026). “Thermal Management of Humanoid Robots.” Liquid cooling mandatory for >500W humanoids.
- Google DeepMind (2025). “Gemini Robotics: Bringing AI into the Physical World.” arXiv:2503.20020.
- Kim, M. et al. (2024). “OpenVLA: An Open-Source Vision-Language-Action Model.” Stanford.
- Figure AI (2025). “Helix: A Vision-Language-Action Model for Generalist Humanoid Control.”
- Wirth, N. (1995). “A Plea for Lean Software.” IEEE Computer, Vol. 28, No. 2.
- Isaacson, W. (2011). Steve Jobs. Simon & Schuster.
- LEECHO & Opus 4.6 (2026). “Software-Hardware Alignment and Automation V2.” LEECHO Global AI Research Lab.
- LEECHO & Opus 4.6 (2026). “Signal and Noise: An Ontology of LLMs.” V4. LEECHO Global AI Research Lab.
